Project Documentation
Interactive CI/CD Deployment Pipeline with Public Trigger
This project demonstrates an unauthenticated, rate-limited public trigger for an AWS CodePipeline, enabling secure, auditable deployments via API Gateway and Lambda.
Problem Statement
Enable unauthenticated external users to trigger an internal CI/CD pipeline securely, without risk of abuse. Traditional AWS CI/CD workflows are secured by IAM and kept private. This project explores how to safely expose a limited public entry point without compromising reliability, cost, or traceability.
Architecture Overview
The overall architecture of the CI/CD deployment pipeline with a public trigger.
Components
| Layer | AWS Service | Role |
|---|---|---|
| API Interface | Amazon API Gateway | Exposes public /trigger endpoint |
| Rate Limiter | AWS Lambda + DynamoDB | Enforces 3 requests per IP per 7-day period |
| Execution Handler | AWS Lambda | Triggers the CodePipeline execution |
| Observability | CloudWatch + SNS | Logs traffic and sends alert on each trigger |
| Audit & Quotas | DynamoDB TTL | Enforces data expiry to manage weekly quotas |
Implementation Steps (Visual Evidence Included)

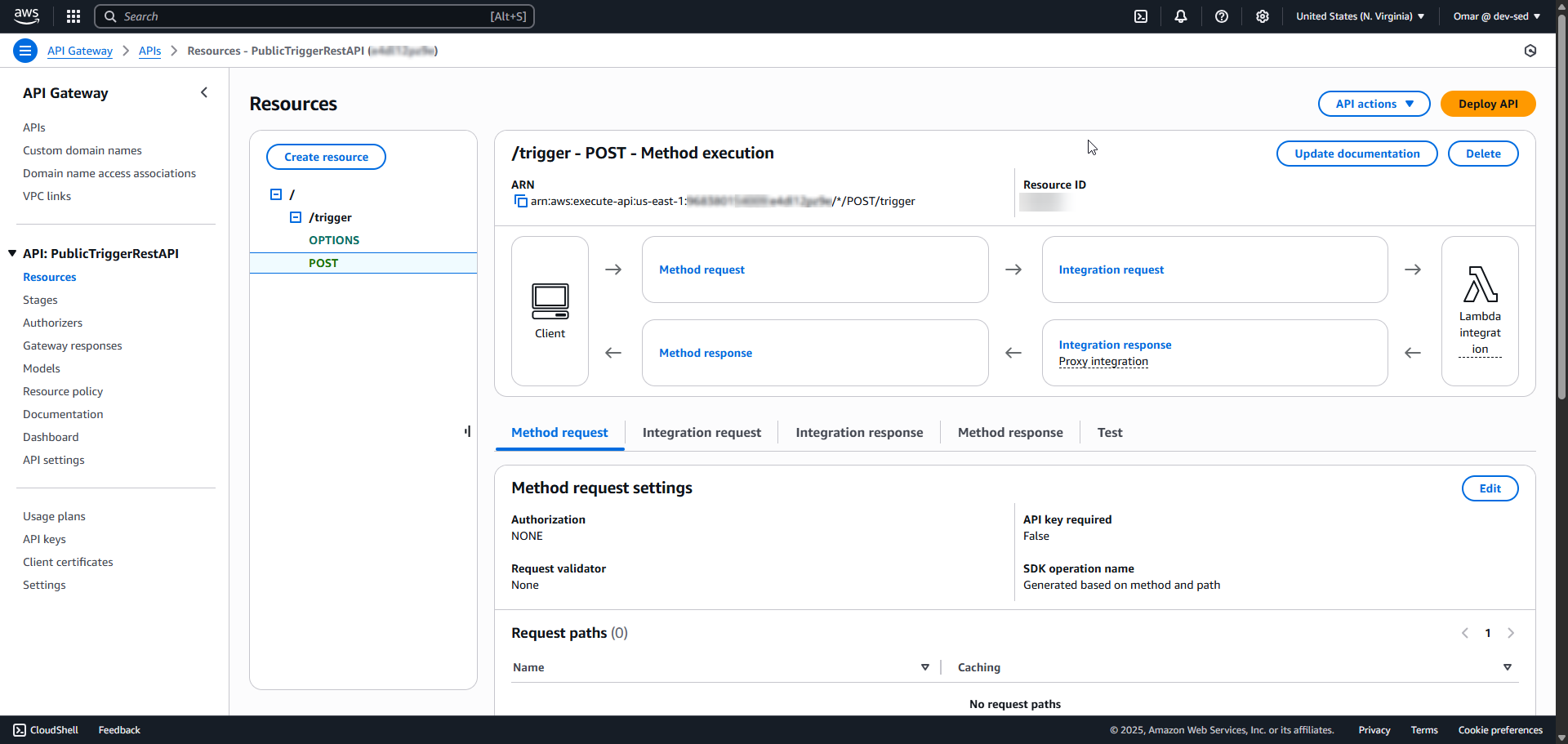

1. API Gateway - /trigger Resource
The POST method configured under the /trigger resource.

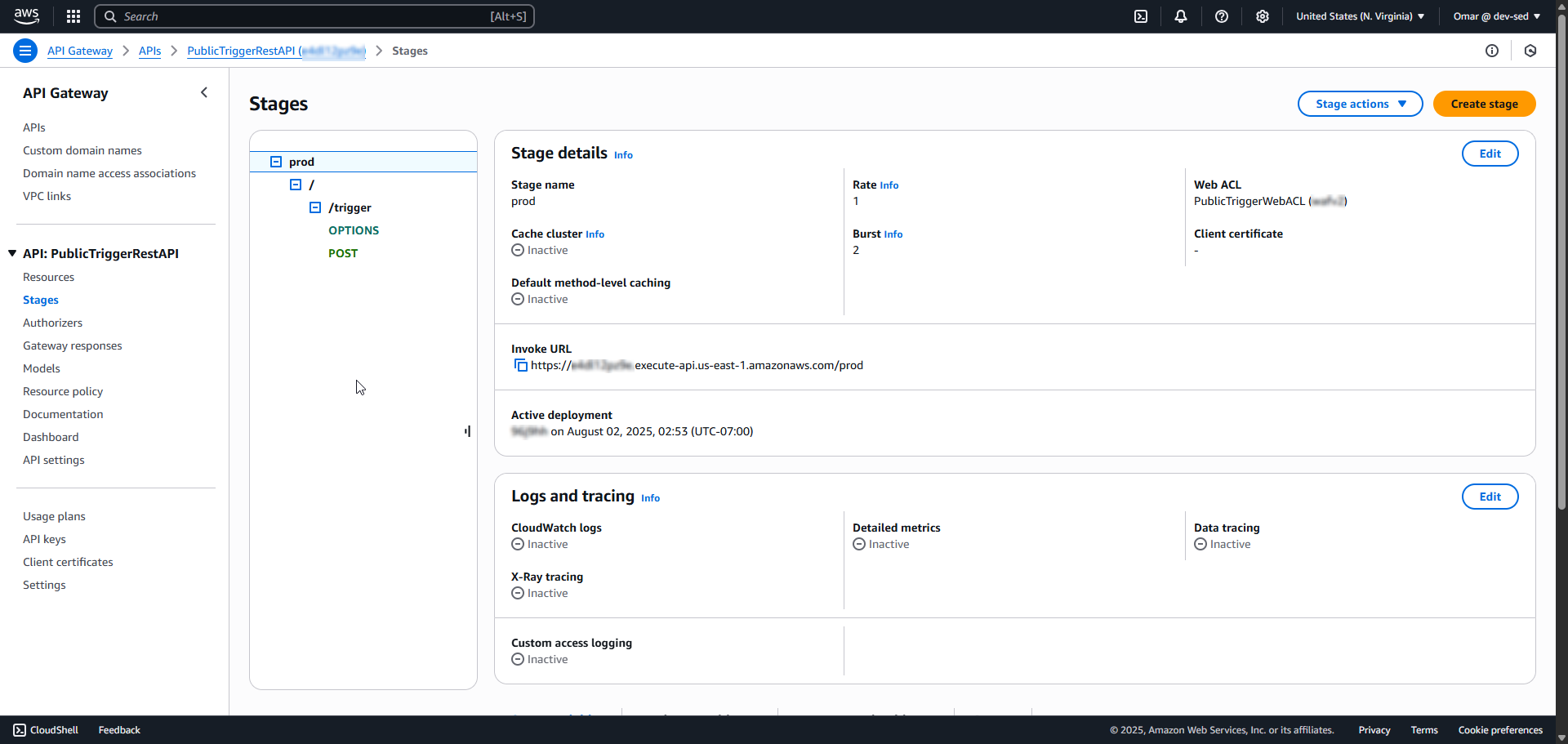

2. Stage Deployment Confirmation
API Gateway production stage deployed with invoke URL.

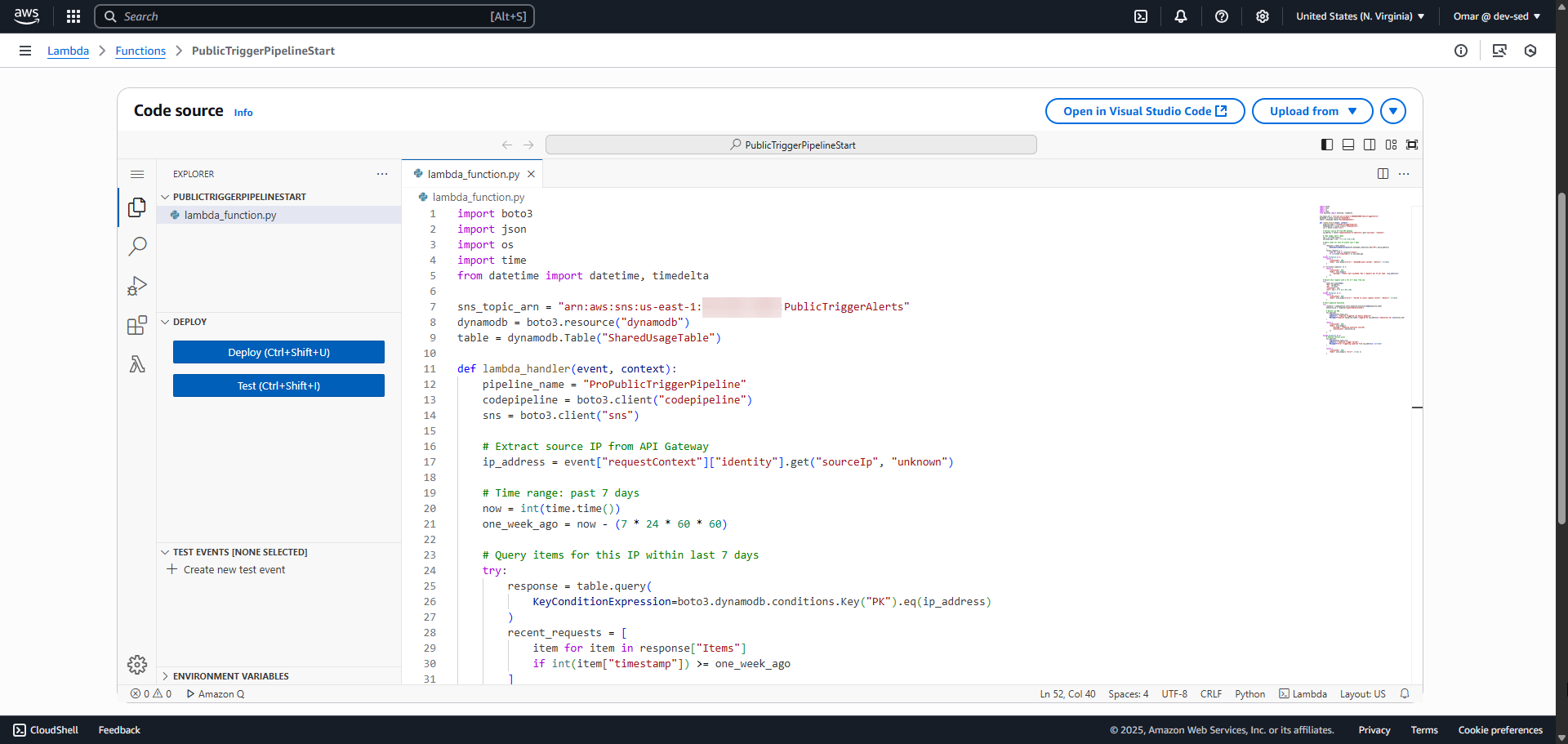

3. Lambda Handler – `PublicTriggerPipelineStart`
Python code enforces per-IP limits and triggers CodePipeline.

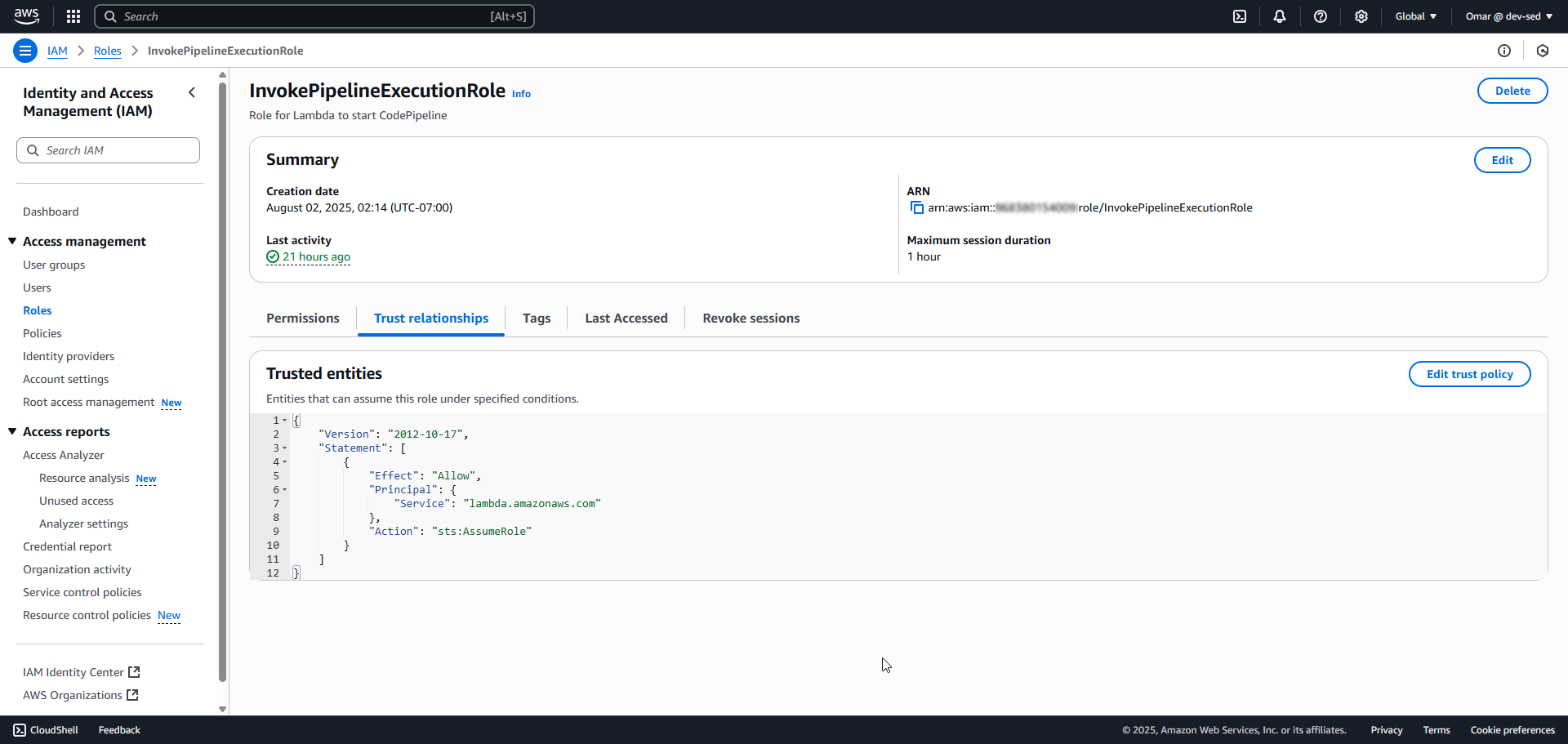

4. Lambda Trust Policy

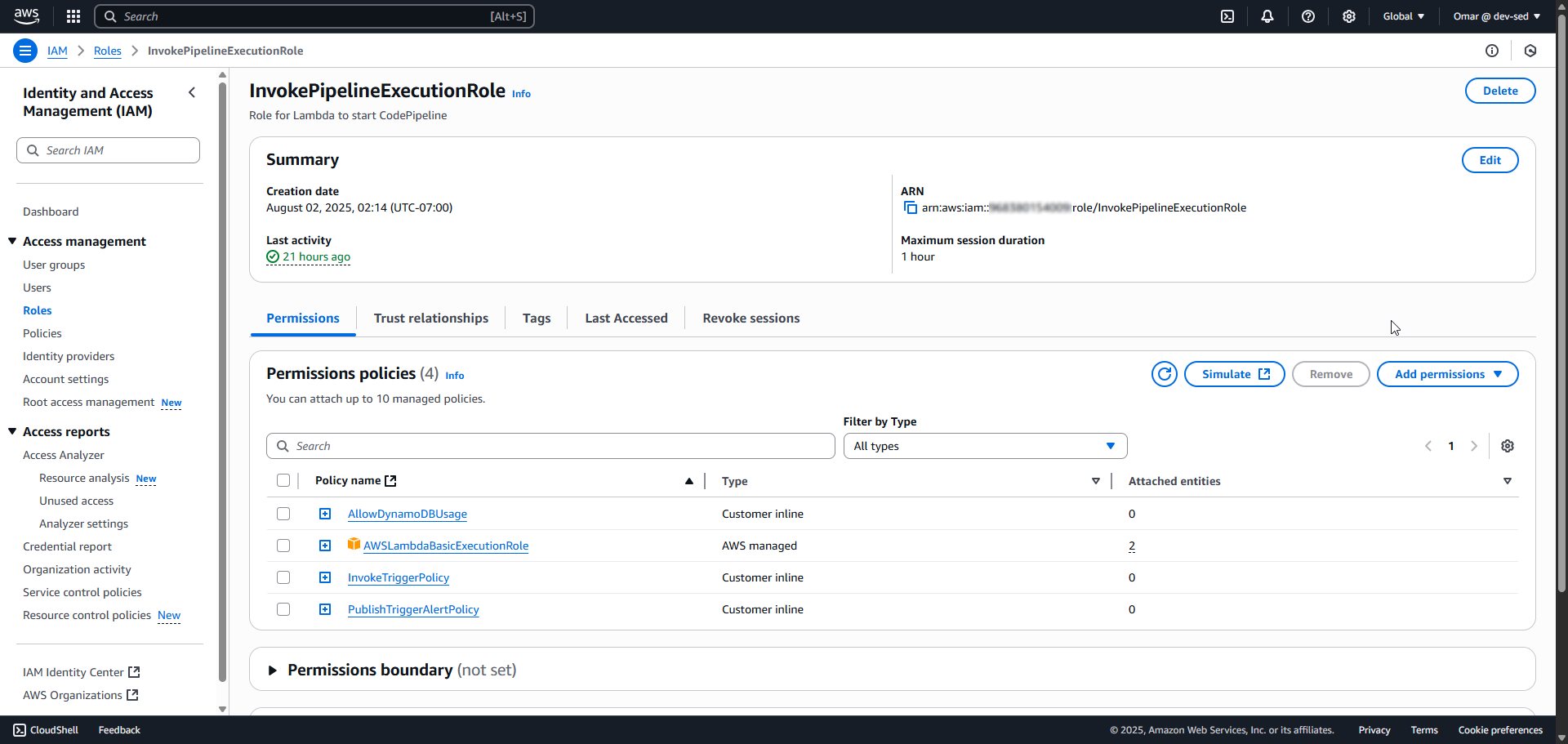

5. Inline Policies Applied

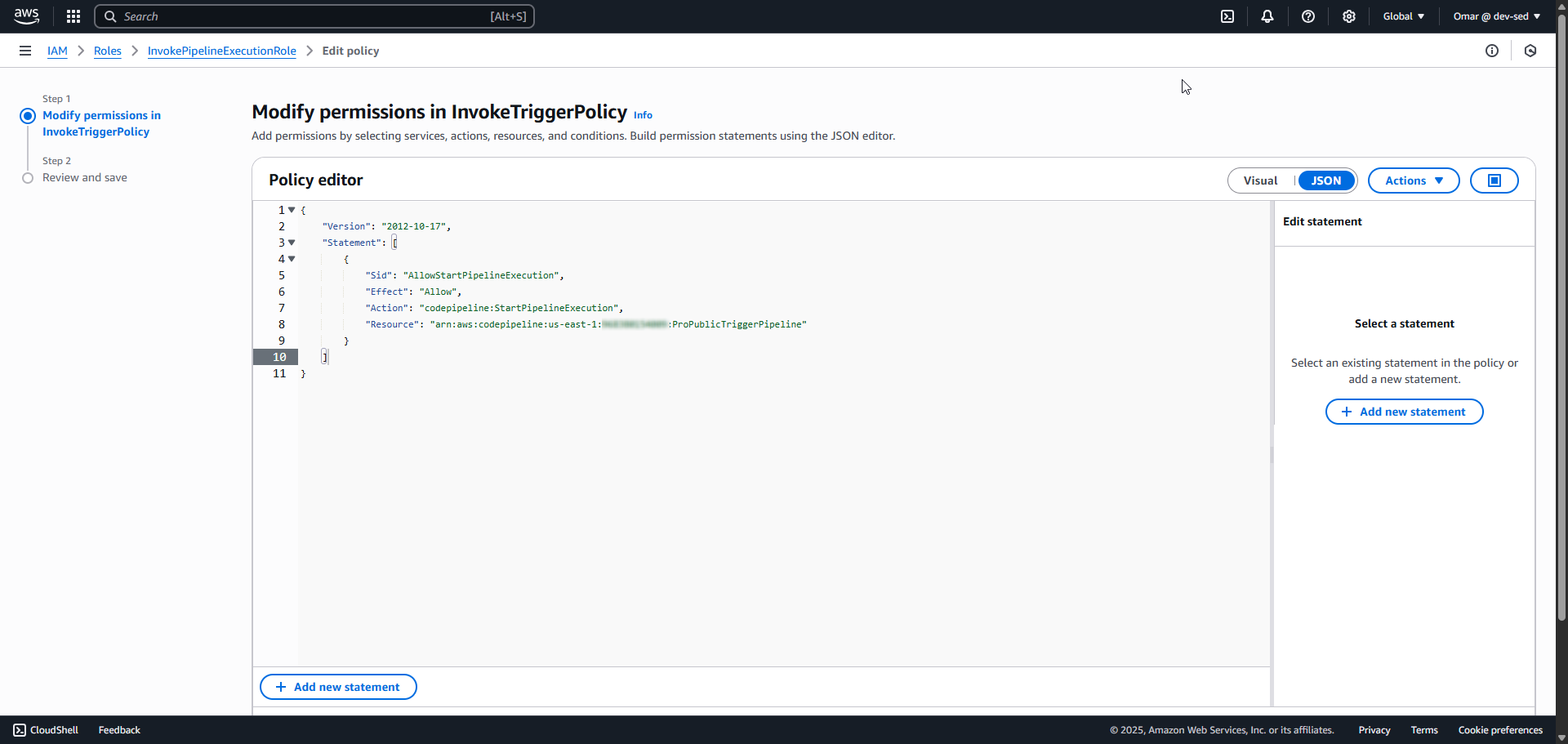

6. InvokeTriggerPolicy

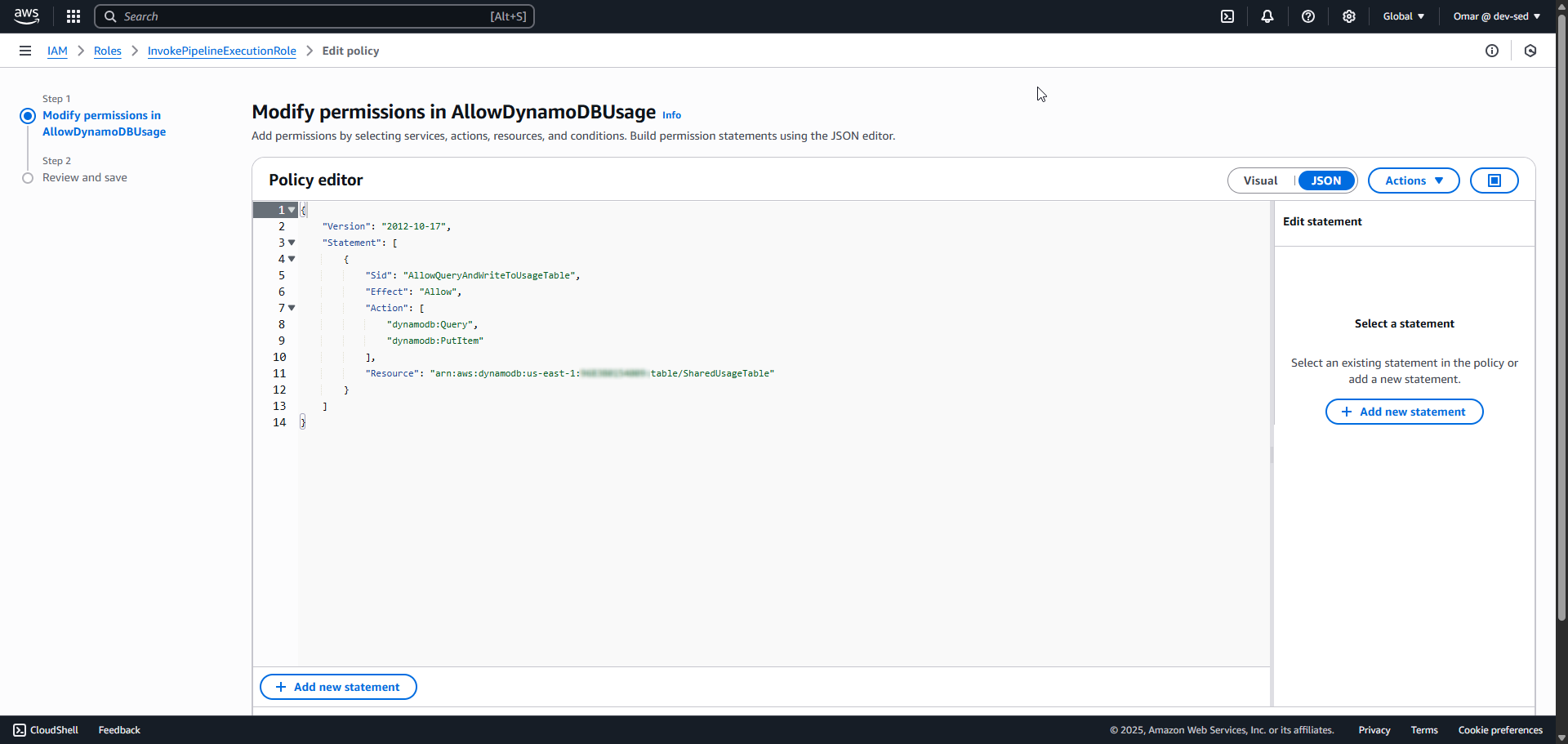

7. AllowDynamoDBUsagePolicy

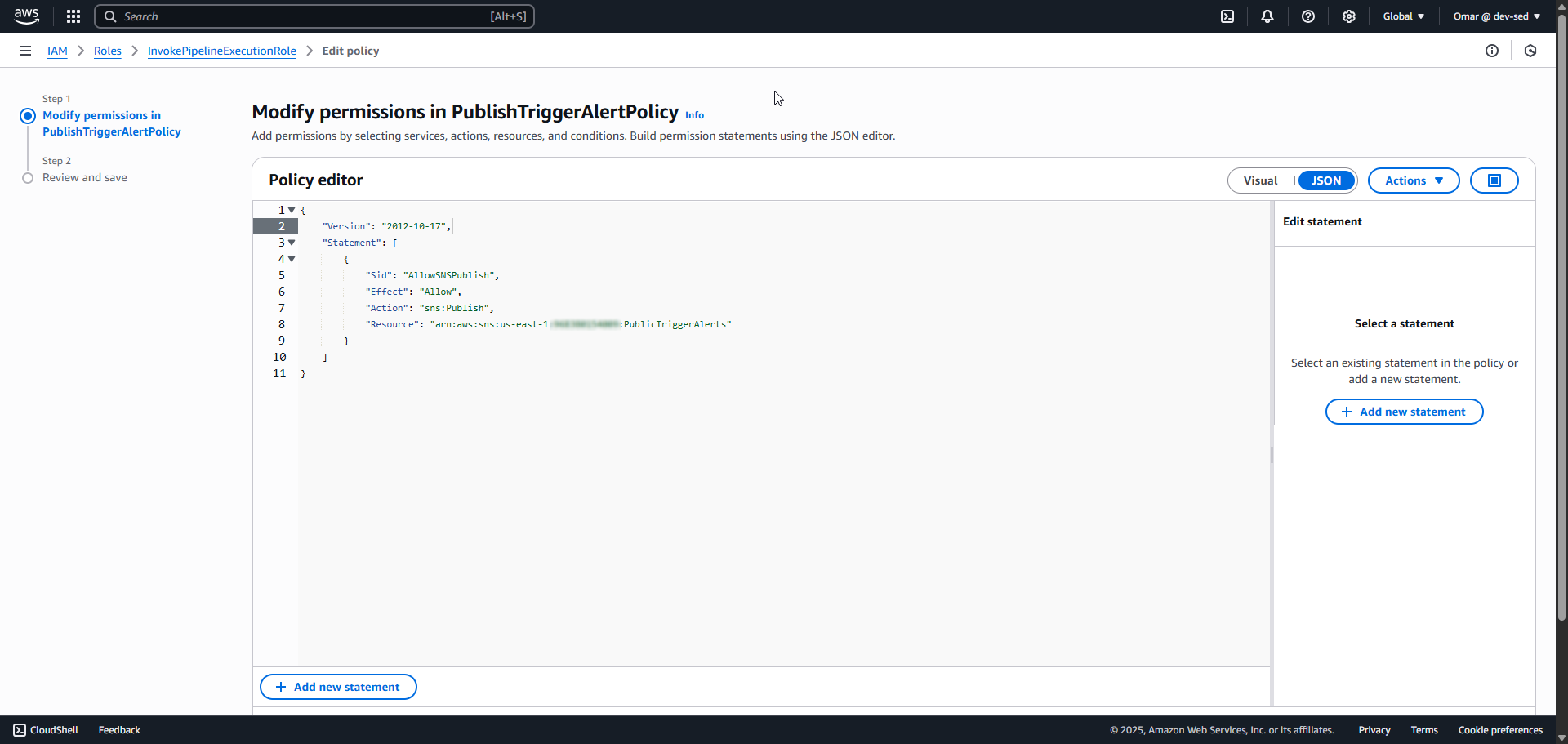

8. PublishTriggerAlertPolicy

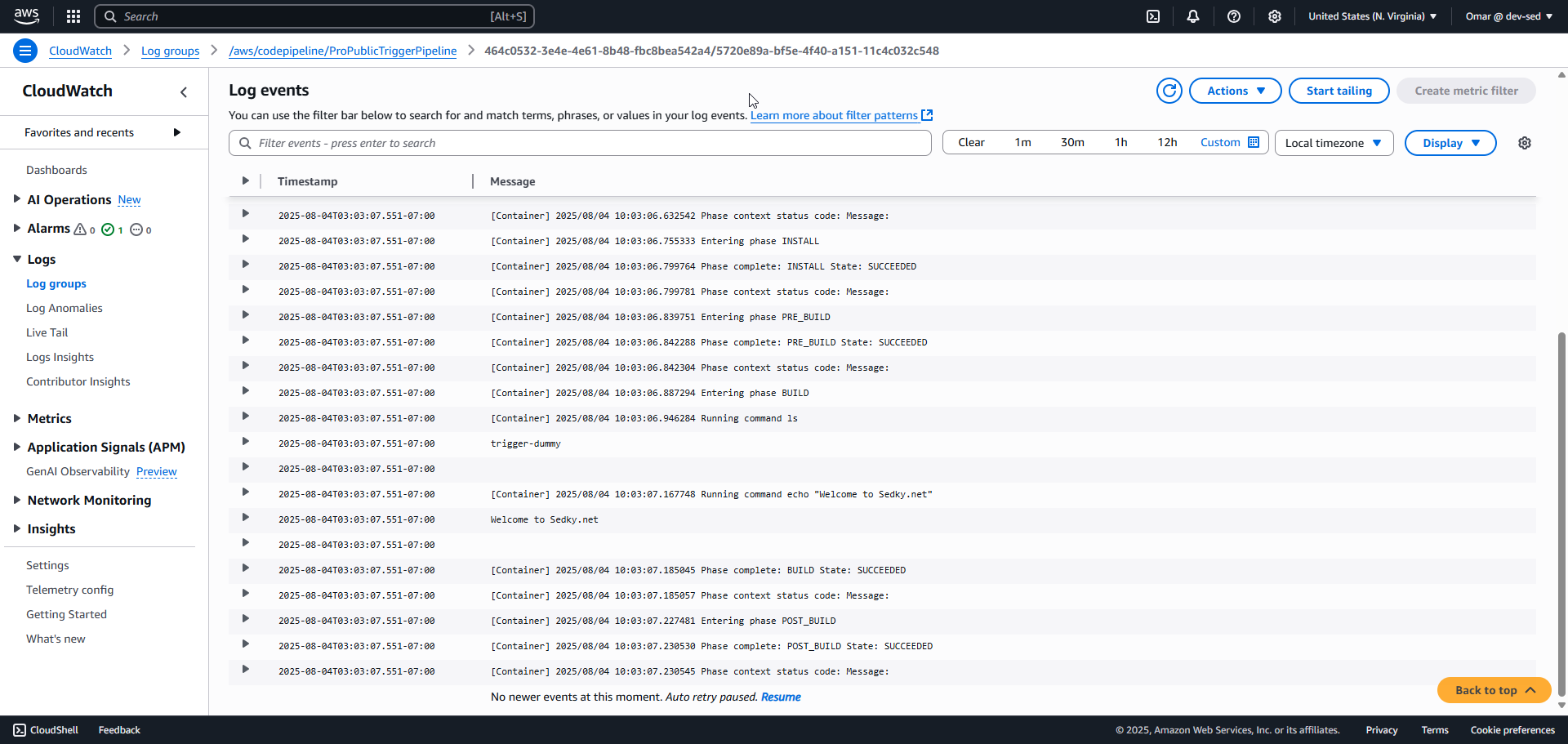

9. CloudWatch Log – Successful Execution
10. CloudWatch Log – Rate Limited

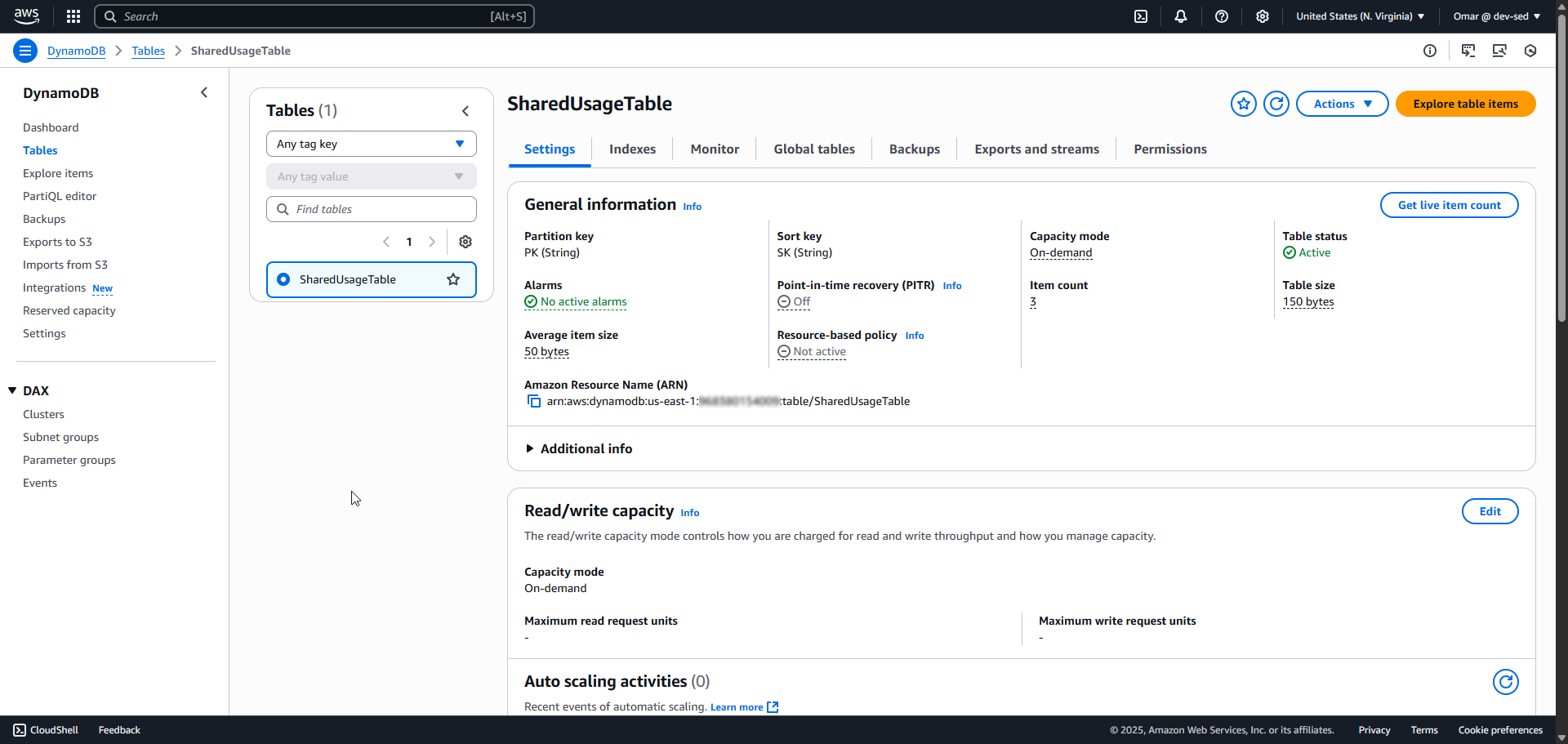

11. DynamoDB Table Schema

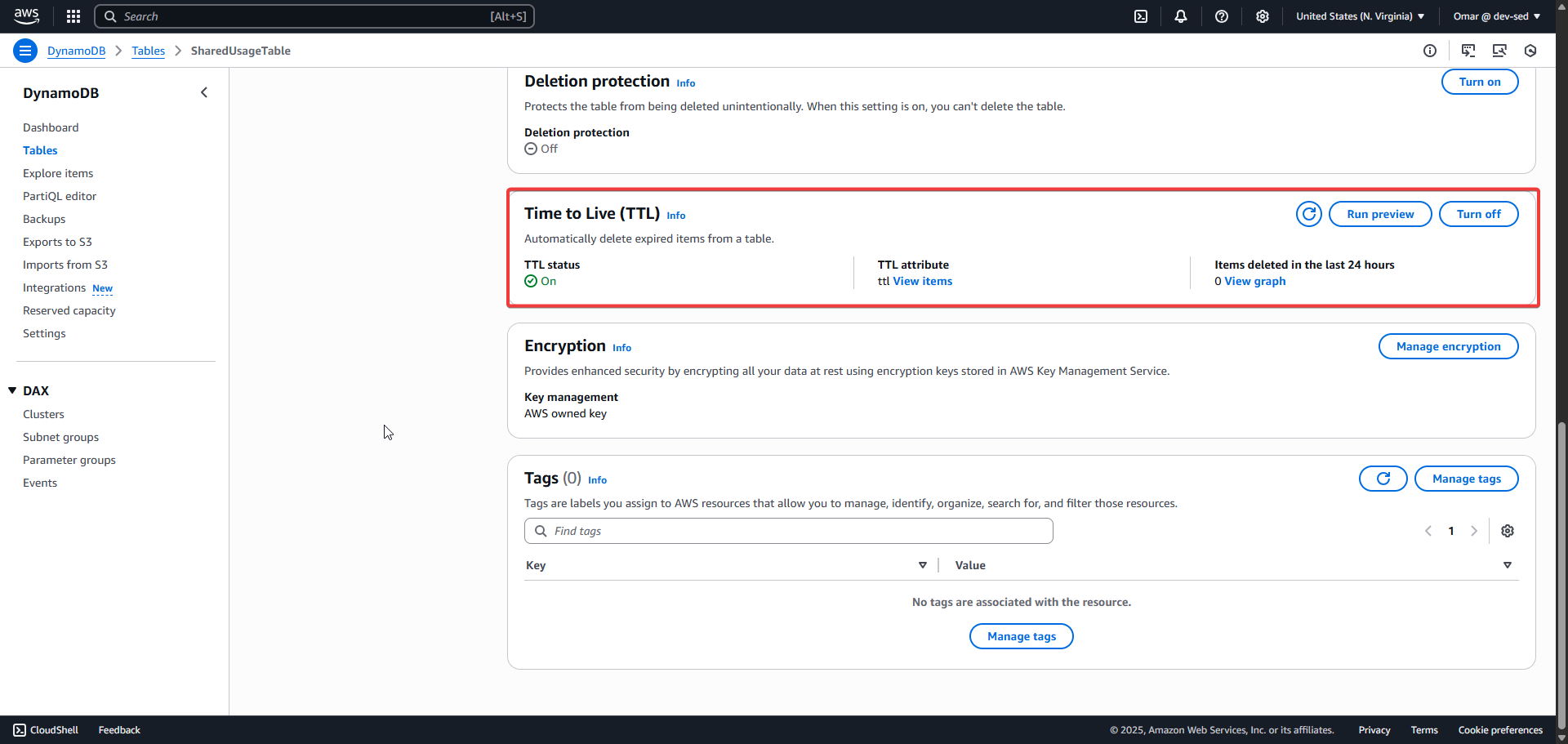

12. TTL Attribute Enabled

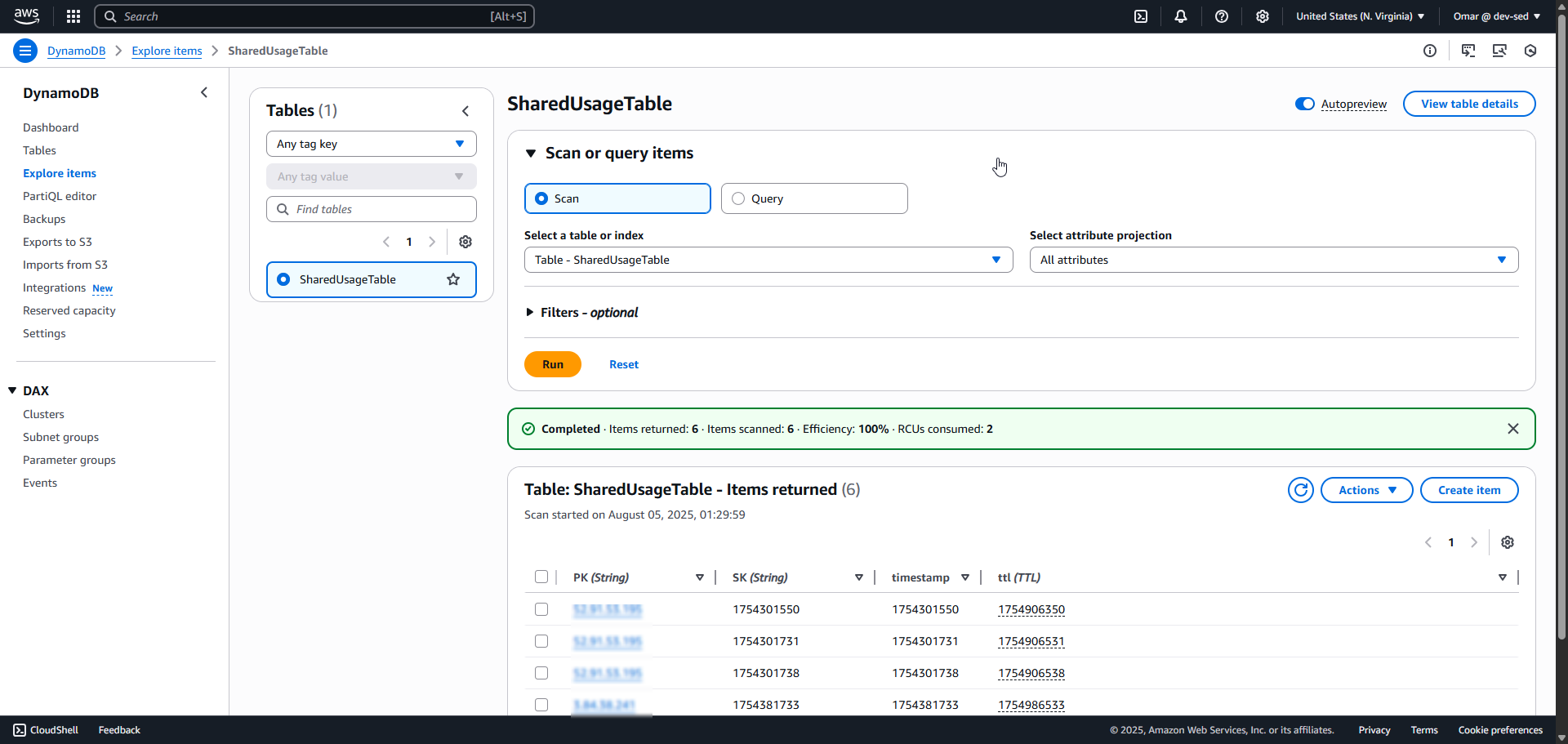

13. Sample Table Records with TTL

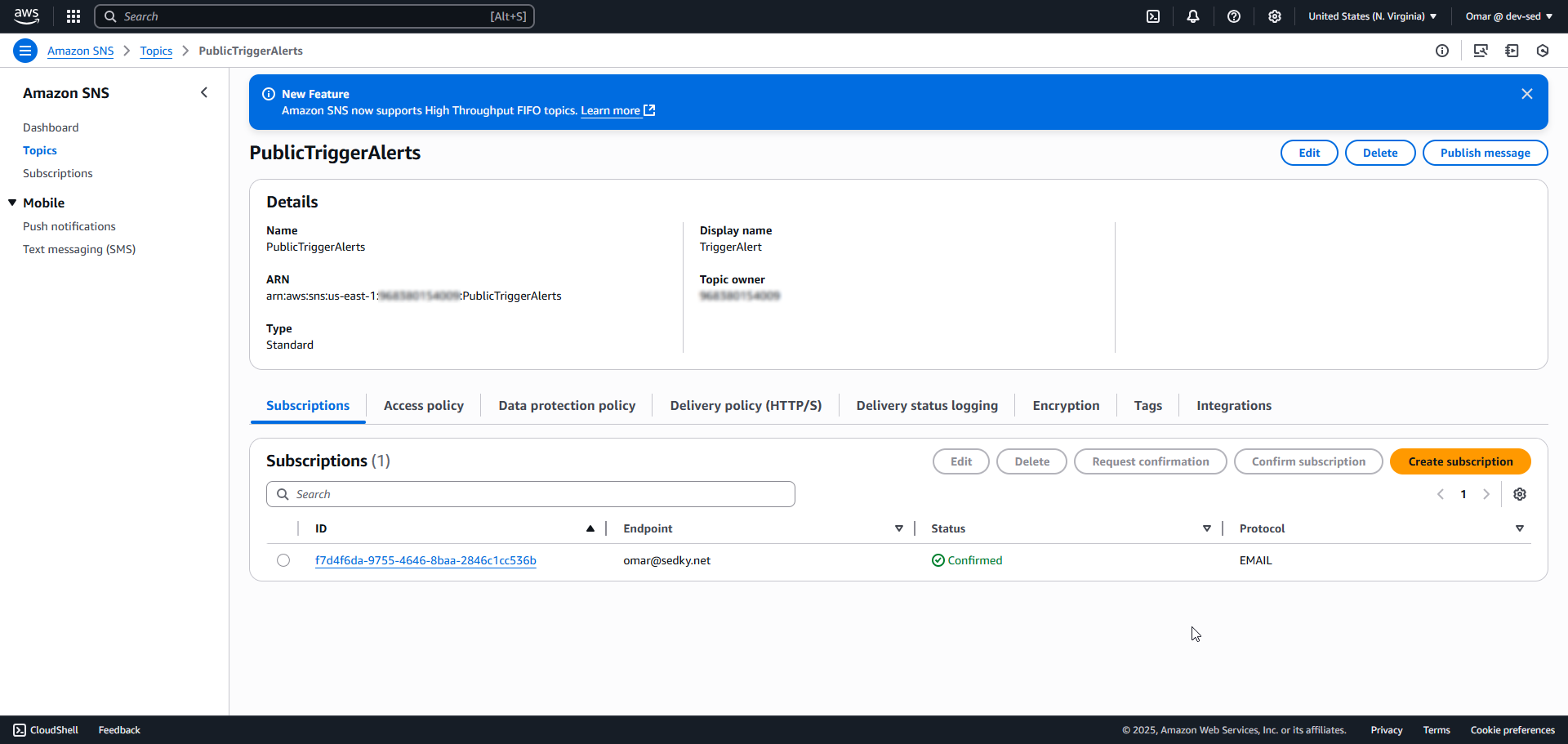

14. SNS Topic Configuration

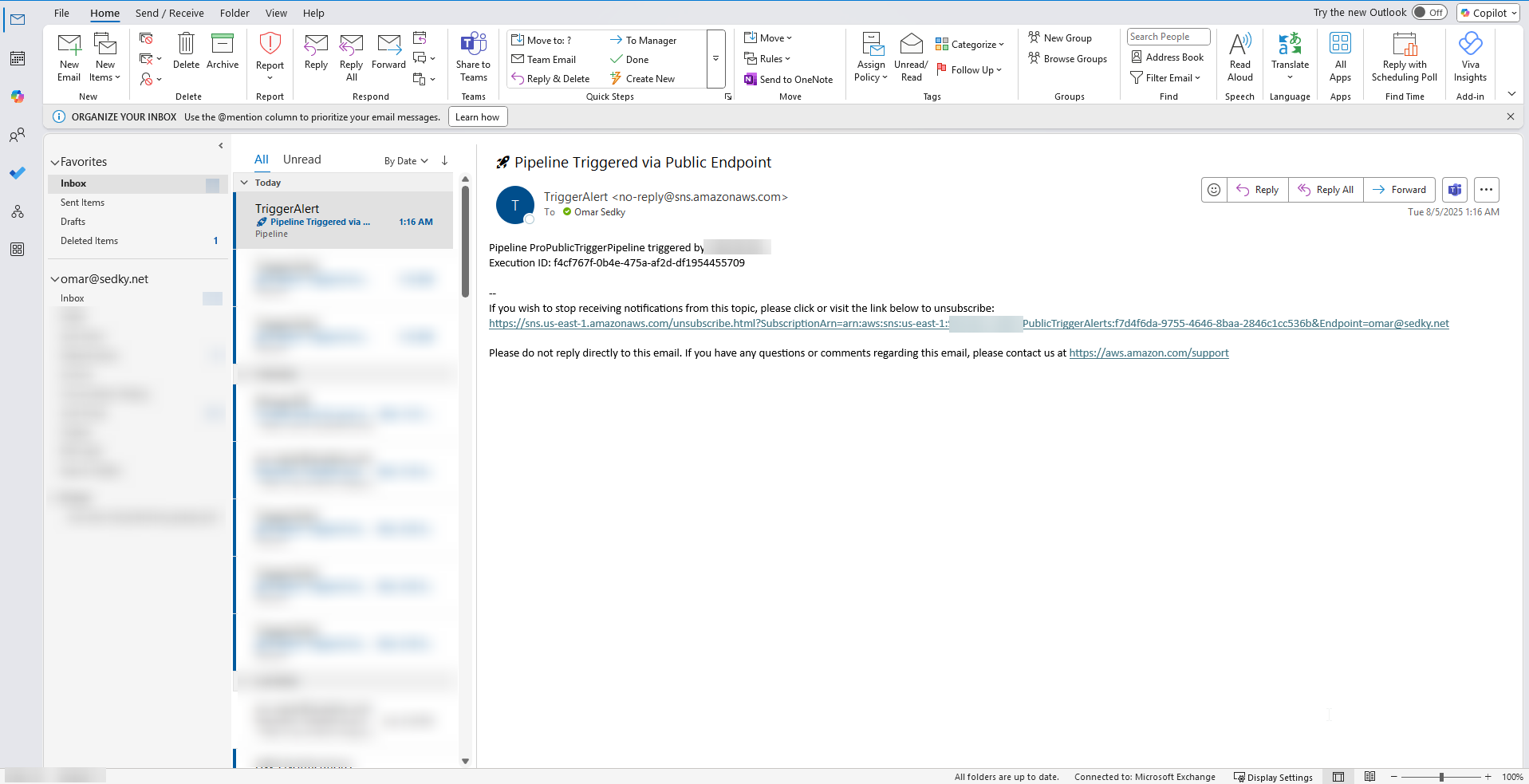

15. Trigger Email Received
16. Trigger Execution - cURL Success

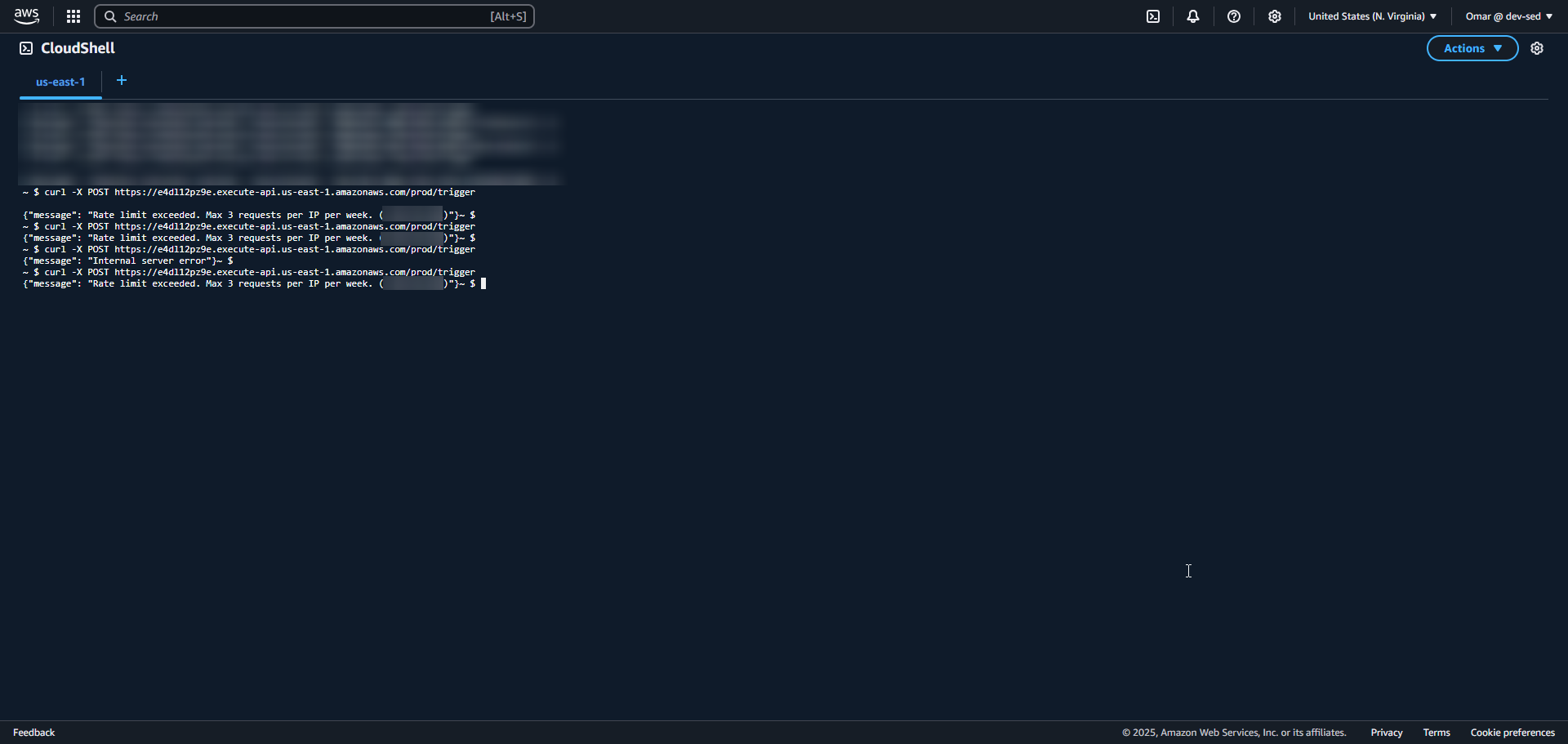

17. Trigger Denied - Rate Limit Hit
Security Controls
- Lambda IAM role scoped to 3 purpose-specific inline policies
- Per-IP DynamoDB-based quota enforcement
- DynamoDB TTL enforces 7-day expiry
- SNS alert on each trigger for auditability
- Full CloudWatch logging for trace and forensic review
Well-Architected Framework Alignment
| Pillar | Alignment |
|---|---|
| Security | IAM least-privilege, request validation, alerting via SNS |
| Reliability | Isolation of abusive actors, no shared state or race conditions |
| Operational Excellence | Fully observable pipeline entry point with failure monitoring |
| Cost Optimization | Serverless architecture, no idle resources, all Free Tier eligible |
| Performance Efficiency | Sub-second Lambda execution, DynamoDB on-demand scaling |
Architect Notes
Error Handling Beyond Rate Limit
CodePipeline failures are caught and routed through SNS. To improve fault resilience, a Dead Letter Queue (DLQ) can be attached to the Lambda. In high-reliability environments, retry policies using EventBridge should also be considered.
Rate Limiting Strategy Comparison
| Method | Pros | Cons |
|---|---|---|
| DynamoDB TTL Logic | Tracks fine-grained quotas per IP, persistent | Requires custom logic and maintenance |
| API Gateway Throttling | Built-in, easy setup | Cannot enforce per-IP quotas over time |
| AWS WAF | Global IP block patterns, flexible rules | Lacks native quota tracking |
This project uses DynamoDB to enforce “3 requests per IP per 7 days” — a business rule not directly supported by API Gateway or WAF.
DynamoDB Scalability
DynamoDB is set to on-demand mode to auto-scale based on real usage. For high-volume traffic:
- Consider provisioned capacity + autoscaling
- Use SK prefixes to partition hot keys
- DynamoDB Accelerator (DAX) may reduce read latency
Cost Notes
| Service | Optimization |
|---|---|
| Lambda | Free tier covers up to 1M invocations monthly |
| API Gateway | ~$3.50 per million calls, caching optional |
| DynamoDB | On-demand for low traffic, switchable to provisioned |
| SNS | Email notifications negligible cost |
This project is cost-effective for public-facing demos or controlled usage in dev environments.
Future Enhancements
- Infrastructure-as-Code (CDK or CloudFormation) for repeatable deployment
- DLQ integration with Lambda for retry resilience
- API Gateway usage plans or AWS WAF for perimeter throttling and abuse detection
Result
The final system securely exposes a public-facing pipeline trigger. It combines Lambda-based execution, DynamoDB quota enforcement, and real-time alerting — all built using fully native AWS services and scoped under Free Tier.
